BRIGGS ANIMAL LO206

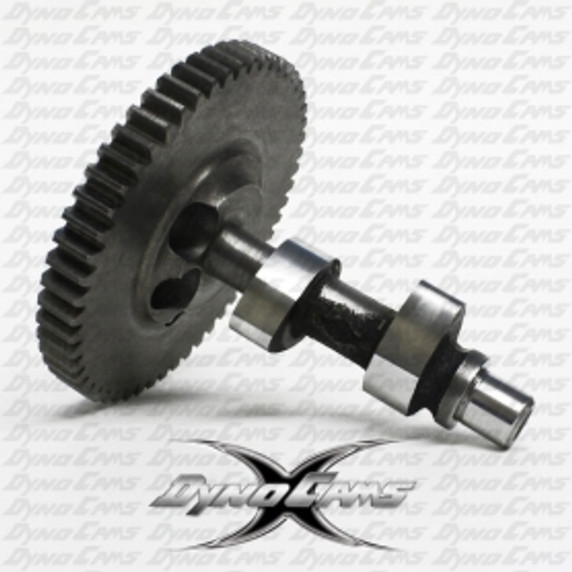

DynoCams Animal Core 308 Grind Comp Release Welded Lobe
PART NUMBER:
1650426
Availability:
Up to 14 day delay.
Special Order Stock:
10+
Ships in:
Ships in 10+ Days
$149.99
Description
The 308 is has a very wide power band, is easy on the valve train, and works very well in a modified engine build. This cam will require an upgraded spring package, billet rod, and billet flywheel.
The Lobes on this Cam are Welded for extra durability.
This cam has the compression release installed.
Specs
Engine: Briggs Intek OHV
Recommended Class: Modified
Target (MAX) RPM: 8500
Spring Pressure (In / Ex): 36 lbs
Valve Lash (In/Ex): .003"
Ignition Timining: 30-32 Deg BTDC
Profile
Intake Exhaust
Open: 53.5 BTDC 91.0 BBDC
Close: 91.0 ABDC 55.1 ATDC
Lift: .308" .308"
C/L: 108.0 ATDC 108.0 BTDC
DUR @ 50: 244.2 Deg 244.6 Deg
