Predator 212 Stage 5 Kit - HEMI
PART NUMBER:
1602423
Availability:
Ships same day if ordered before 12PM Eastern time.
In Stock Today:
23
Ships in:
Ships Today
$329.95
If you plan on using a Mikuni or Tillotson carb on your Hemi build, this is the kit for you!
Any performance build needs to start with a solid foundation. We have included an ARC Billet Flywheel and ARC Billet Connecting Rod to ensure a solid build. The Billet Flywheel has 32 degrees of advance built in. Use the stock timing key.
The DynoCams "Super X" CM grind camshaft pairs well with the larger carburetors and provides great mid-range and high RPM power!
This kit fits the following engines: Fits Predator 212cc HEMI, Fits GX200, and 196cc OHV Clone
Recommended Class: Super Stock
Target (MAX) RPM: 7500
Spring Pressure (In / Ex): 20 lbs
Valve Lash (IN/EX): .003"
Ignition Timing: 30 Deg BTDC
INTAKE
LIFT: .265
Dur @ .050": 236.9 Deg.
C/L: 108 ATDC
EXHAUST
LIFT: .265
Dur @ .050": 236.5 Deg.
C/L: 108 BTDC
The Stainless Steel valve kit is a drop in for the Hemi head. These valves have a flat face to increase compression and flow better than stock valves. This will get rid of the standard slip over retainers and replaces them with aluminum retainers and split lock keepers. The included 26# white stripe springs will keep you out of valve float!
Also included is a complete gasket set (less seals) and an AutoLite 3910X racing spark plug

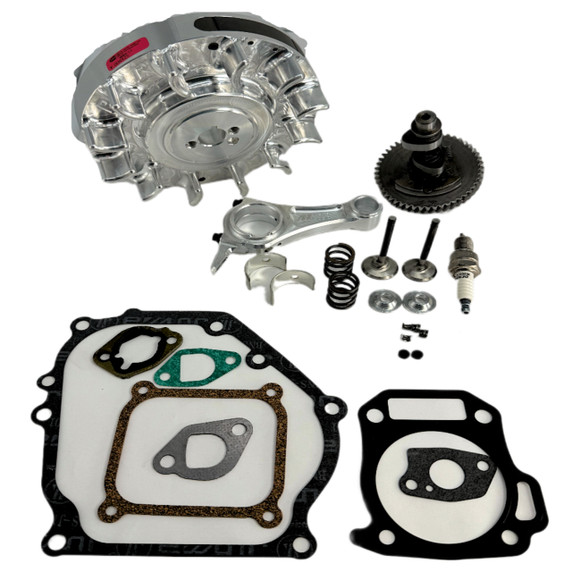

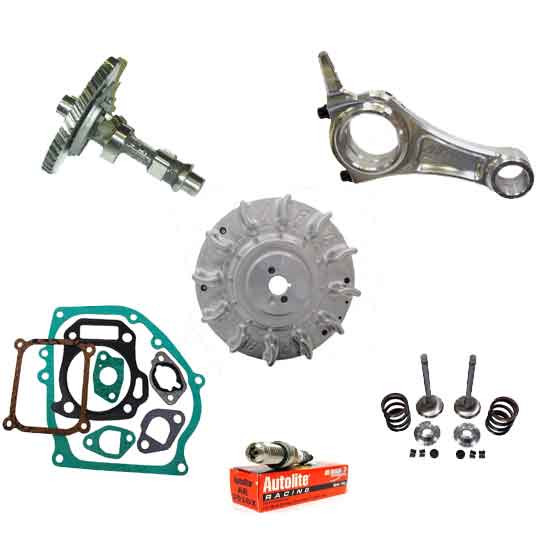

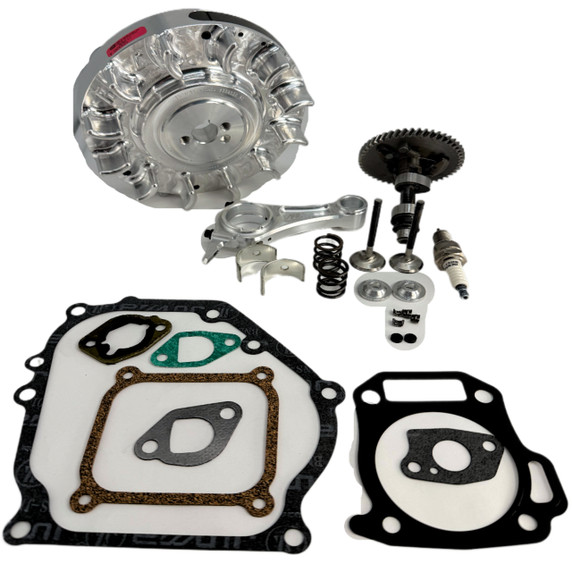

KIT CONTENTS
- (1) ARC_6626 Billet Aluminum Flywheel
(1) ARC_6254 Billet Connecting Rod with bearings
(1) DC_CL-CM DynoCams "Super X" CM Grind cam
(1) ARC_DJ-1305PH Gasket kit
(1) ARC_DJ-SSVALVE-HKT Stainless Steel Valve kit
(1) TD_AR3910X AutoLite Racing Spark Plug
Predator 212 Stage 5 Kit - HEMI
$329.95
If you plan on using a Mikuni or Tillotson carb on your Hemi build, this is the kit for you!
Any performance build needs to start with a solid foundation. We have included an ARC Billet Flywheel and ARC Billet Connecting Rod to ensure a solid build. The Billet Flywheel has 32 degrees of advance built in. Use the stock timing key.
The DynoCams "Super X" CM grind camshaft pairs well with the larger carburetors and provides great mid-range and high RPM power!
This kit fits the following engines: Fits Predator 212cc HEMI, Fits GX200, and 196cc OHV Clone
Recommended Class: Super Stock
Target (MAX) RPM: 7500
Spring Pressure (In / Ex): 20 lbs
Valve Lash (IN/EX): .003"
Ignition Timing: 30 Deg BTDC
INTAKE
LIFT: .265
Dur @ .050": 236.9 Deg.
C/L: 108 ATDC
EXHAUST
LIFT: .265
Dur @ .050": 236.5 Deg.
C/L: 108 BTDC
The Stainless Steel valve kit is a drop in for the Hemi head. These valves have a flat face to increase compression and flow better than stock valves. This will get rid of the standard slip over retainers and replaces them with aluminum retainers and split lock keepers. The included 26# white stripe springs will keep you out of valve float!
Also included is a complete gasket set (less seals) and an AutoLite 3910X racing spark plug
KIT CONTENTS
- (1) ARC_6626 Billet Aluminum Flywheel
(1) ARC_6254 Billet Connecting Rod with bearings
(1) DC_CL-CM DynoCams "Super X" CM Grind cam
(1) ARC_DJ-1305PH Gasket kit
(1) ARC_DJ-SSVALVE-HKT Stainless Steel Valve kit
(1) TD_AR3910X AutoLite Racing Spark Plug
