Magna-Matic MAG-200-4K Dust Collector (Knifemaker Edition) 4" Inlet with Spark Box

MAG-200-4K - KNIFEMAKER EDITION - is ready for your custom application, regardless your dry metal grinding application the MAG-200-4K comes with a 4" inlet flange and 200-70 Spark Arresting Box.

We strongly recommend this version be used with any BELT GRINDER due to the higher spark temperatures of belt grinding.

• New design 10" impeller for increased performance
• Carry handles mounted on top
• Quick release catch clamps to remove the bottom tray for faster clean out
• Internal filter guides to make it easier to re-install the metal mesh filter after cleaning
• Inlet of your choice (see above buttons to choose inlet size)
• 3rd stage filter now standard on all MAG-200 Dust Collectors

An industrial dust collector designed for any dry metal grinding, sanding, or polishing operations. The MAG-200 features 3 stages of filtration a metal mesh, MERV 8 pad filter, and MERV 13 pleated filter and has a quiet 70 decibel operating noise level. It will safely draw live sparks, dust, and grit and filter the air that passes through at a MERV 8 rating, lastly the air passes through the MERV 13 filter.

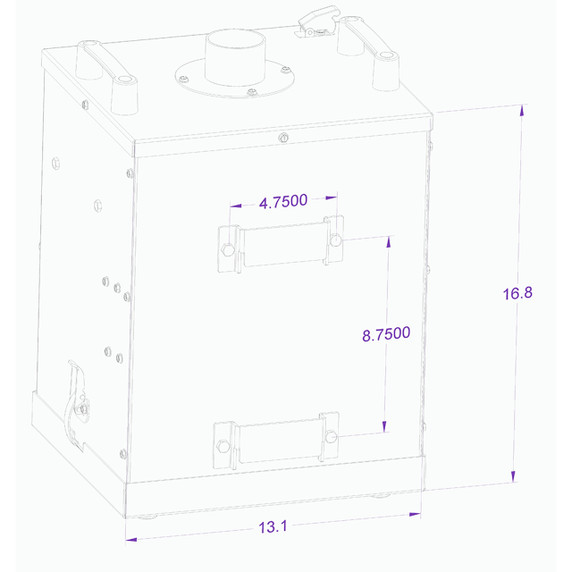

Dimensions: 15" x 13" x 26" tall

Three Stages of Filtration

• METAL MESH FILTER designed to break up air flow and kill sparks
• MERV 8 FILTER rated filters will remove particles 3 to 10 micron in size and larger, which includes most dust and grit.
• MERV 13 FILTER rated filters will remove particles 0.3 to 1 micron in size and larger, which includes fine dust and some fumes/smoke.

Performance Data:

• 2.5" Inlet CFM = 250
• 3" Inlet CFM = 330
• 4" Inlet CFM = 400
• Pressure 6.5" H2O @ 0 CFM
• 70 decibel Noise Level

IMPORTANT: We strongly recommend a 4' long run of hose or pipe, and that you have a grit guard, or spark in-take on the machine that is creating the dust when spark volume is high. Full spark load should not be directly straight piped into the dust collector, the 200-70 Spark Arresting Box is designed to help cool off all the sparks before they reach the internal spark arrestor.

Included In Box

• 1 MAG-200 Dust Collector (110 volt, with 7 foot long cord)
• 1 Inlet 4" dia

• 1 200-70 Spark Arresting Box
• 1 Metal Mesh Filter (installed) Part # 200-12
• 1 MERV 8 Pad Filter (installed) Part# 200-15
• HOSE SOLD SEPARATELY
• 1 Third Stage Filter Shroud
• 1 MERV 13 Pleated Filter Part# 200-17

Country of Origin:USAVoltage:115v / 60HzAmperage (Start/Run):14/7Horsepower:0.5 HPMotor RPM:3450 RPMCFM:400
