DynoCams

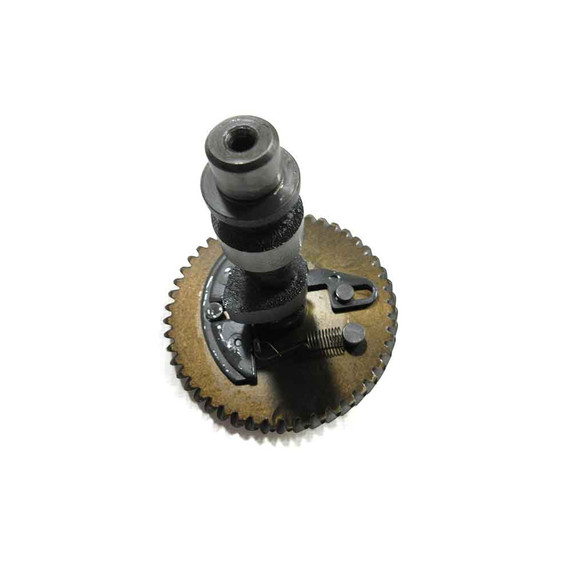

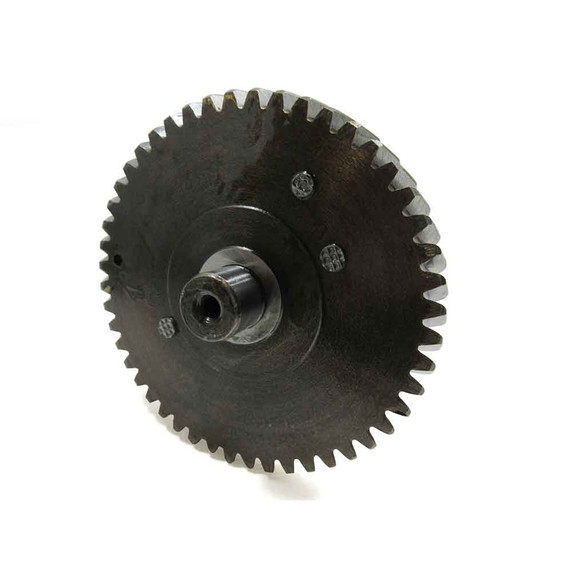

CL-216 Grind, Clone Core Cam
PART NUMBER:
451742
Availability:
Up to 21 day delay.
Special Order Stock:
10+
Ships in:
Ships in 10+ Days
$50.00
The CL-216 cam has an aggressive ramp and requires an upgraded spring package, billet rod, and flywheel. A stock carb can be used with this cam.
The CL-216 cam has an aggressive ramp and requires an upgraded spring package, billet rod, and flywheel. A stock carb can be used with this cam.
Engine: 196cc OHV Clone
Recommended Class: Cheater Stock
Target (MAX) RPM: 7000
Spring Pressure (In / Ex): 18 lbs
Valve Timing:
INTAKE
LIFT: .246
Dur @ .050": 216.6 Deg
C/L: 108 ATDC
EXHAUST
LIFT: .246
Dur @ .050": 216.2 Deg
C/L: 108.4 BTDC
VALVE LASH: .003
CHECK LASH WHEN ENGINE IS COLD
RECOMMENDED IGN TIMING: 30 Deg BTDC
THIS CAM IS FLAME HARDENED HEAT TREATED
Processed and ground by the hard working employees of DynoCams in the USA.
